Aims Power - Switch for Dual Sensing Battery Isolator
Dual Battery Sensing Isolator Manual Switch This optional manual switch enhances control over the Dual Battery Sensing Isolator, allowing users to link both batteries with the push of a button. It permits current to flow for up to 60 seconds without alternator support, even when both batteries are below 12.7V.... read more
- Regular price
- $19.00
- Regular price
-
$22.00 - Sale price
- $19.00
- Unit price
- per
SHOP WITH CONFIDENCE
APPLIANCE GUYS STANDS BEHIND EVERY TRANSACTION
100%
Satisfaction Guaranteed
Easy Shipping
Price Match
When Will My Item Arrive?
Once shipped, items usually arrive within 3–5 business days. If your item or order is large, it may ship via one of our third-party freight carriers, which deliver from semi trucks with lift gates. Freight delivery is much more complicated than standard parcel shipping — you must schedule a drop-off time, be present for the delivery, and move items from the curb to your residence, among other differences. Sound stressful? If you prepare in advance with ourguide to freight delivery, it doesn’t have to be.
We strongly encourage reading the entire freight delivery guide, but here’s aquick snapshot of what you need to be ready for when you order a large package:- Your freight carrier will call you to schedule a delivery window of about 4–8 hours
- You’re required to be physically present at the specified delivery location during the scheduled window
- Freight shipments are carried in semi trucks, which have lift gates to assist with unloading
- Freight deliveries are dropped off at the curb and no further — not up the driveway, not the porch, not the garage, and most definitely not the backyard — so it’s on you to transport packages to their intended locatio
- For an easier time hauling items to your home or backyard, arrange for at least 2 helpers to be on standby during your delivery window
- You must sign for the shipment to indicate that you’ve accepted the delivery
Again, we recommend reading our entire breakdown of freight delivery so you can become familiar with the process. Trust us when we say that getting caught off guard with the strict requirements of freight delivery can lead to a whole lot of headaches.
This item leaves our warehouse within 30-Day Returns
Returns: Return all new, unused, and unassembled items in their original packaging, and we’ll give you a full refund minus the cost of the original AND return shipping. Made to order and special order items are not applicable for returns.
Restocking Fee: A 20% restocking fee will be applied to returned items.

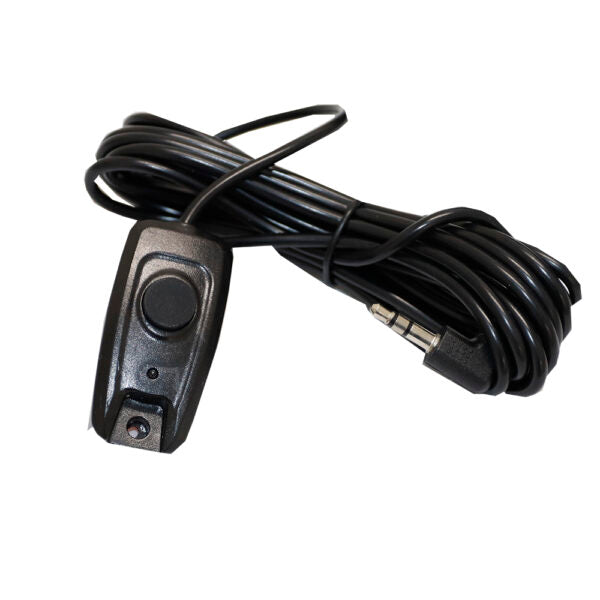

Dual Battery Sensing Isolator Manual Switch
This optional manual switch enhances control over the Dual Battery Sensing Isolator, allowing users to link both batteries with the push of a button. It permits current to flow for up to 60 seconds without alternator support, even when both batteries are below 12.7V. The isolator continuously monitors both the starter and auxiliary batteries and connects them when either exceeds 13.2V, enabling smart energy sharing. This feature is particularly useful when charging the starter battery from a solar panel or charger connected to the auxiliary battery. Once system voltage drops below 12.7V, the solenoid automatically isolates the starter battery, preventing an accidental drain. This manual switch offers a reliable, cost-effective way to manage dual battery systems while ensuring that the starter battery always has sufficient power, eliminating the risk of a flat start in remote or critical-use situations.
Features
-
Functionality: Automatically connects the auxiliary battery to the charging system when either battery reaches 13.2 volts
-
Battery Charging: Safely charges your auxiliary battery while driving
-
Battery Monitoring: Continuously monitors both starter and auxiliary battery voltages
-
Battery Protection: Prevents draining the main battery, helping avoid flat starts
-
Efficiency: Cost-effective solution for dual battery setups
Specifications
-
System Voltage: 12V
-
Auto-On Voltage: >13.2V
-
Auto-Off Voltage: 12.7V
-
Turn-On Delay: 5 seconds
-
Turn-Off Delay: 10 seconds
-
Max Continuous Current: 300 amps
-
Standby Current: <5mA
