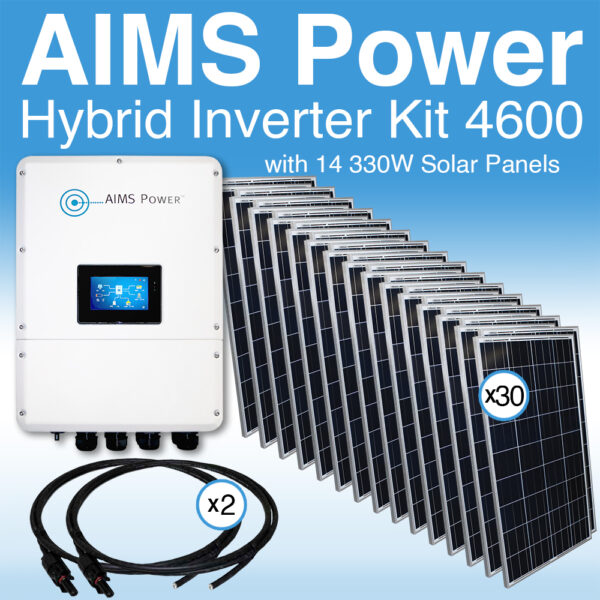

Aims Power - KIT Hybrid Pure Sine Inverter Charger & Solar Panels 4.6 kW Inverter Output, 4620 Watts Solar Panels
Hybrid Inverter & Solar Panel Kit for Total Power Control Gain complete autonomy over your energy with this hybrid inverter and solar panel kit, designed to give you true independence from the grid. This powerful system intelligently manages your energy by combining solar generation, battery storage, and grid input with... read more
SKU:
KITHY46SOL330
Vendor:
Aims Power
Availability:
Out Of Stock
Product Type:
Inverter Charger
FREE SHIPPING
- Regular price
- $5,476.00
- Regular price
-
$5,750.00 - Sale price
- $5,476.00
- Unit price
- per
SHOP WITH CONFIDENCE
APPLIANCE GUYS STANDS BEHIND EVERY TRANSACTION
100%
Satisfaction Guaranteed
Easy Shipping
Price Match
When Will My Item Arrive?
Once shipped, items usually arrive within 3–5 business days. If your item or order is large, it may ship via one of our third-party freight carriers, which deliver from semi trucks with lift gates. Freight delivery is much more complicated than standard parcel shipping — you must schedule a drop-off time, be present for the delivery, and move items from the curb to your residence, among other differences. Sound stressful? If you prepare in advance with ourguide to freight delivery, it doesn’t have to be.
We strongly encourage reading the entire freight delivery guide, but here’s aquick snapshot of what you need to be ready for when you order a large package:- Your freight carrier will call you to schedule a delivery window of about 4–8 hours
- You’re required to be physically present at the specified delivery location during the scheduled window
- Freight shipments are carried in semi trucks, which have lift gates to assist with unloading
- Freight deliveries are dropped off at the curb and no further — not up the driveway, not the porch, not the garage, and most definitely not the backyard — so it’s on you to transport packages to their intended locatio
- For an easier time hauling items to your home or backyard, arrange for at least 2 helpers to be on standby during your delivery window
- You must sign for the shipment to indicate that you’ve accepted the delivery
Again, we recommend reading our entire breakdown of freight delivery so you can become familiar with the process. Trust us when we say that getting caught off guard with the strict requirements of freight delivery can lead to a whole lot of headaches.
This item leaves our warehouse within 30-Day Returns
Returns: Return all new, unused, and unassembled items in their original packaging, and we’ll give you a full refund minus the cost of the original AND return shipping. Made to order and special order items are not applicable for returns.
Restocking Fee: A 20% restocking fee will be applied to returned items.
Hybrid Inverter & Solar Panel Kit for Total Power Control

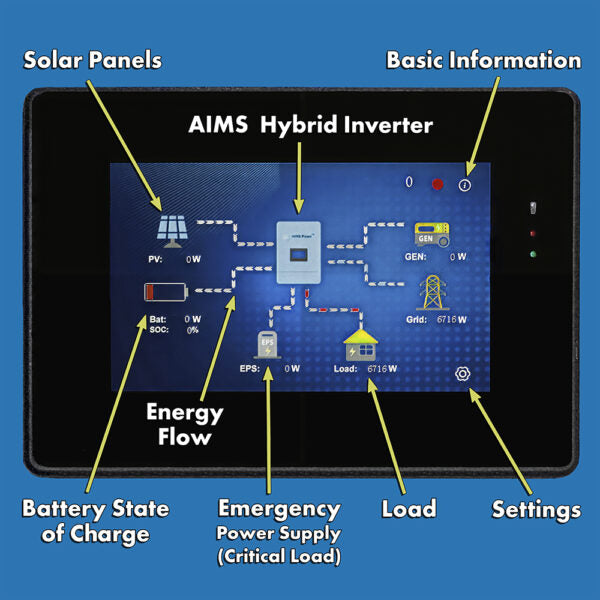

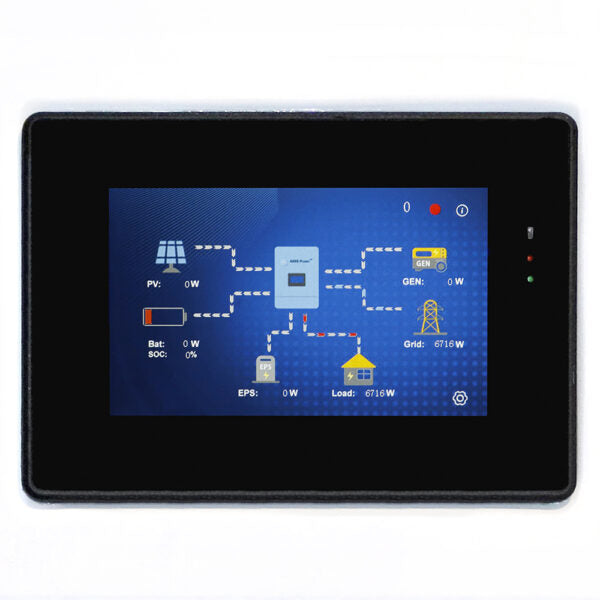

Gain complete autonomy over your energy with this hybrid inverter and solar panel kit, designed to give you true independence from the grid. This powerful system intelligently manages your energy by combining solar generation, battery storage, and grid input with user-defined programming. Whether you're charging an EV, running your home during outages, or simply reducing your electric bill, the inverter ensures seamless transitions between power sources. Store excess energy for night use, sell it back to the grid, or use it on demand—your power, your rules. The intuitive touch-screen interface and remote-access mobile app make monitoring effortless, while the high-voltage design boosts efficiency, durability, and system safety. This kit includes a 9,900-watt solar array (30 panels at 330W each), ideal for both off-grid and grid-tied applications. Say goodbye to utility dependence and hello to smart, flexible, and reliable energy with this all-in-one solution.
Specifications
Photovoltaic (PV) Input
-
Max Input Power (kW): 6.9
-
Max PV Voltage (V): 660
-
MPPT Range (V): 80–550
-
Normal Voltage (V): 360
-
Startup Voltage (V): 100
-
Max Input Current (A): 15.5 × 2
-
Max Short Circuit Current (A): 26 × 2
Battery Port
-
Max Charge/Discharge Power (kW): 6.9 / 6.9
-
Max Charge/Discharge Current (A): 50
-
Battery Voltage (V): 230
-
Battery Voltage Range (V): 80–495
-
Battery Type: Lithium, Lead
AC Grid Output
-
Max Continuous Power (kVA): 4.6
-
Max Continuous Current (A): 19.5 / 22.5
-
Nominal Grid Voltage (V): 211–264 @ 240V | 183–229 @ 208V
-
Nominal Grid Frequency (Hz): 60
-
Output Power Factor: 0.99 adjustable
-
Current THD (%): <3
AC Backup & Generator
-
Max Continuous Power (kVA): 4.6
-
Max Continuous Current (A): 19.5 / 22.5
-
Max Peak Current (A, 10 min): 28.8 / 33.2
-
Max Peak Power (kVA, 10 min): 6.9 / 6.9
-
Nominal AC Voltage L-L (V): 240 / 208
-
Nominal AC Voltage L-N (V): 120 / 120
-
Nominal AC Frequency (Hz): 60
-
Switching Time (ms): <10
-
Voltage THD (%): <3
Efficiency
-
CEC Efficiency (%): 97
-
Max Efficiency (%): 97.6
-
PV to Battery Efficiency (%): 98.1
-
Battery to AC Efficiency (%): 96.8
Protection Features
-
PV Reverse Polarity Protection: Yes
-
Battery Reverse Polarity Protection: Yes
-
Over Current/Voltage Protection: Yes
-
Anti-Islanding Protection: Yes
-
AC Short Circuit Protection: Yes
-
Residual Current Detection: Yes
-
Ground Fault Monitoring: Yes
-
Insulation Resistor Detection: Yes
-
PV Arc Detection: Yes
-
Rapid Shut Down/Disconnect: Yes
-
Enclosure Protection Level: IP65 / NEMA 4X
General Data
-
Cooling Method: Natural Convection
-
Relative Humidity Range: 0–100%
-
Operating Temperature Range: -25 to 60°C | -77 to 140°F
-
Operating Altitude: <4000 m | <13,123 ft (no derating)
-
Noise Emission (dB): <25
-
Standby Consumption (W): <10
-
Mounting Type: Wall Bracket
-
RSD Communication: SUNSPEC
-
Display & Interfaces: Full Color LED, RS485, CAN, Wi-Fi
-
Certifications: UL 1741 SA, CSA 2202 No. 107-01, UL 1998, Rule 21, HECO Rule 14, IP65, CEC
-
EMC Compliance: FCC Part 15 Class B

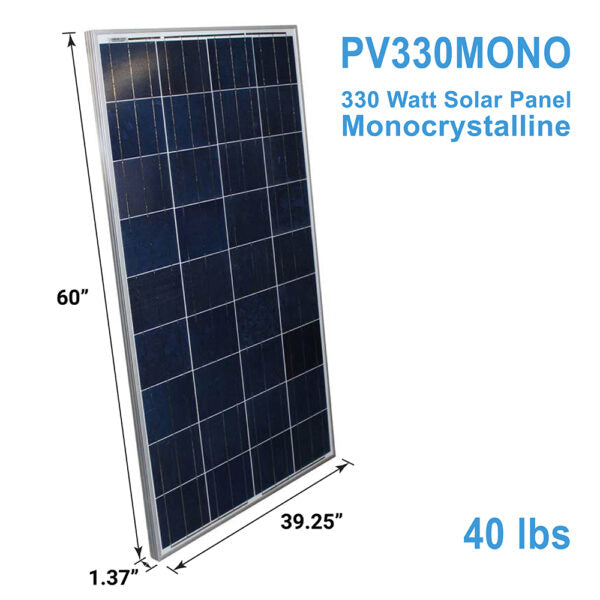

Solar Panel Specifications
-
Maximum Power (W): 330
-
Optimum Power Voltage (Vmp): 33.9
-
Optimum Operating Current (Imp): 9.73
-
Open Circuit Voltage (Voc): 41.5
-
Short Circuit Current (Isc): 10.22
-
Solar Cell Type: 158.75 × 158.75 mm mono
-
Number of Cells: 60 (6×10)
-
Front Glass Thickness (mm): 3.2
-
Temperature Coefficient of Isc (%/°C): -0.048
-
Temperature Coefficient of Voc (%/°C): -0.29
-
Temperature Coefficient of Power (%/°C): -0.37
-
Operating Temperature Range (°C): -40 to +80
-
Wattage Tolerance: 0 to +3 W
-
Surface Load Capacity: 6000 Pa
-
Hail Load Tolerance: 45 mm at 30.7 m/s
-
Bypass Diode Rating (A): 10
-
Cell Efficiency (%): 21.47
-
Module Efficiency (%): 19.78
-
Performance Warranty: 91.2% @ 12 years, 80.6% @ 25 years
-
Test Conditions: AM1.5, 1000W/m², 25 ±2°C
-
Fill Factor (FF %): 70–76
-
Cable Length: 41″
-
Module Dimensions (in): 65.35 × 39.37 × 1.4
-
Panel Weight (lb): 39.7
