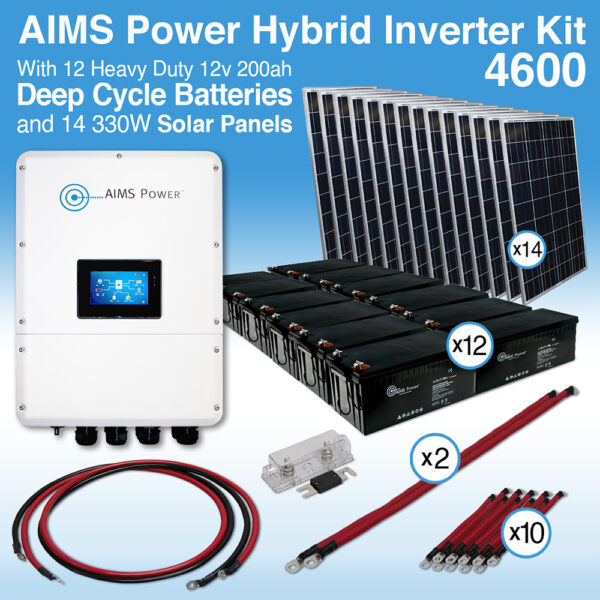

Complete Hybrid Inverter & Solar Power Kit for True Energy Independence
The Complete Hybrid Inverter & Solar Power Kit is your all-in-one solution for total energy independence. With configurations offering either 4.6kW or 9.6kW inverters, paired with a large battery bank and up to 9900 watts of solar, this system is designed for grid tie, off-grid, net metering, and generator integration. The powerful hybrid inverter acts as the central command for all your energy sources, ensuring your home stays powered through outages while reducing or even eliminating electric bills. Its intelligent programming allows you to customize when to charge, store, or sell back solar energy—day or night. An easy-to-use touchscreen and remote monitoring via a smartphone app give you full control no matter where you are. Designed for durability and high efficiency, this system runs at higher voltages to minimize stress, ensuring safe, reliable operation. Take control of your power—because true freedom starts with energy autonomy.
Features
Power Generation & Conversion:
-

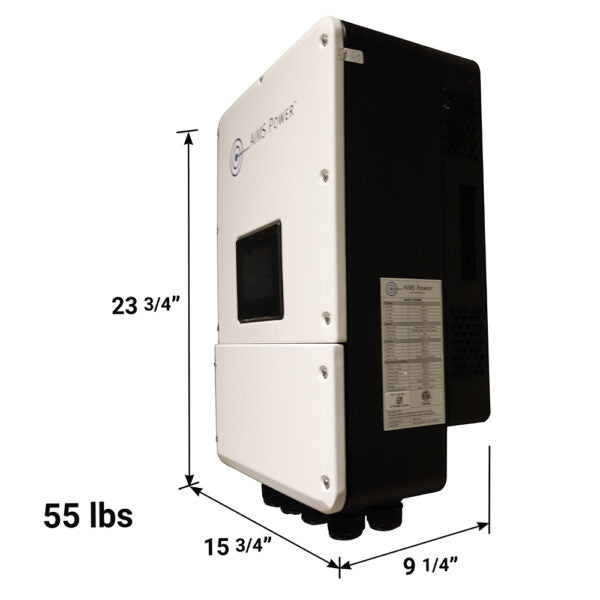

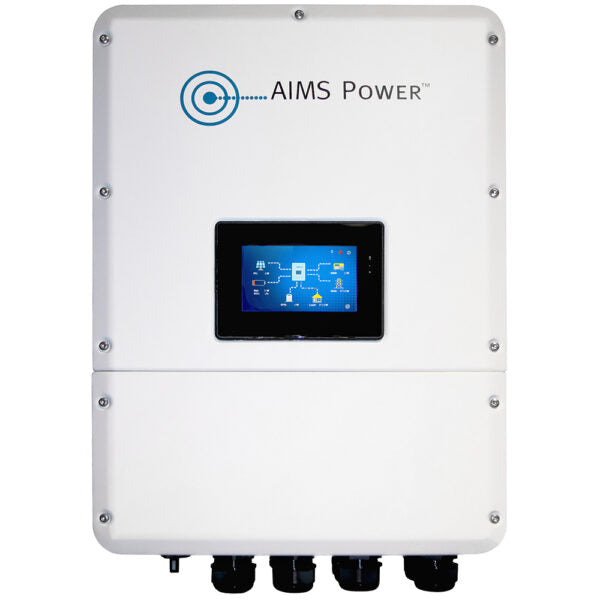

Hybrid Inverter Charger: 4600-watt capacity for efficient energy conversion and battery charging
-

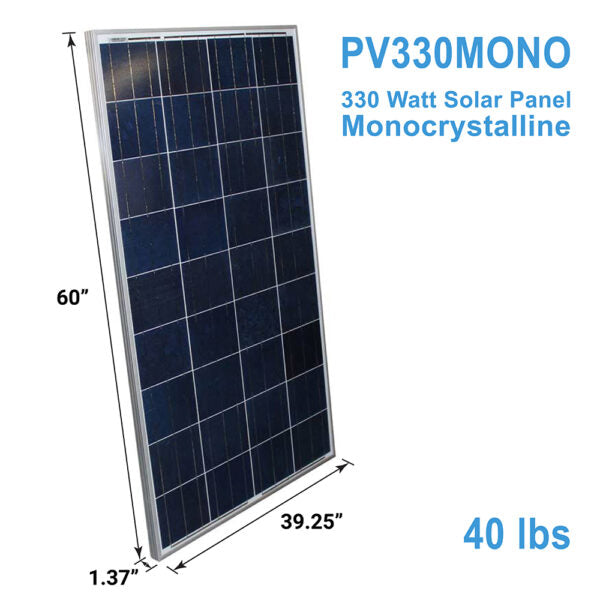

Solar Panels: 14 monocrystalline panels, each rated at 330 watts for high-output solar harvesting
Energy Storage:
-

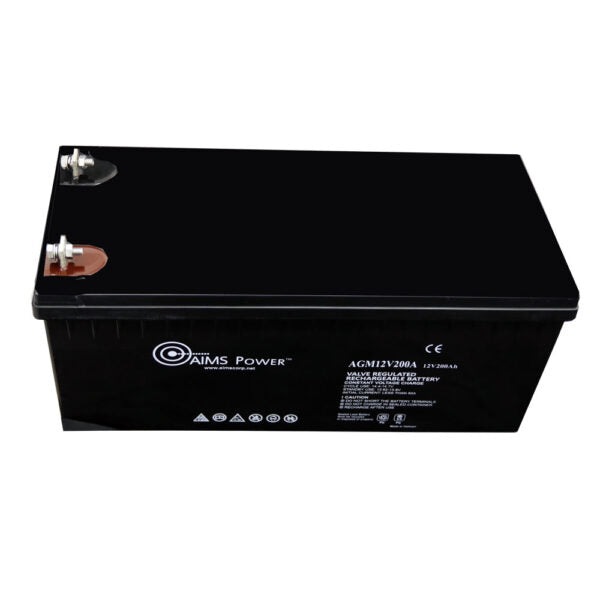

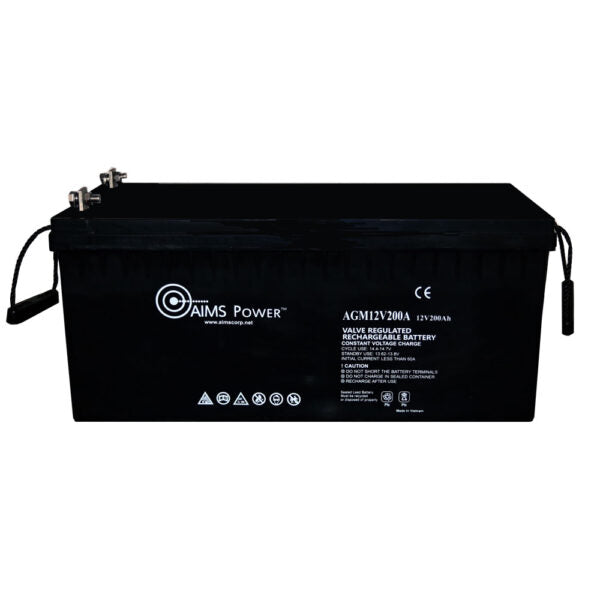

AGM Batteries: 12 units of 12V, 200 amp-hour deep-cycle AGM batteries for reliable power storage
Electrical Connections:
-
Inverter to Battery Cables: 20FT set for safe and efficient power transfer
-
Battery Jumper Cables: 1FT cables for connecting batteries in series
-
Battery Series Cables: 3FT cables to support series battery configurations
-
Fuse and Holder: Ensures overcurrent protection for system safety
-
PV Wiring: Complete set of photovoltaic wires for seamless panel integration
Specifications
PV Input
-
Max Input Power (kW): 6.9
-
Max PV Voltage (V): 660
-
MPPT Range (V): 80–550
-
Normal Voltage (V): 360
-
Startup Voltage (V): 100
-
Max Input Current (A): 15.5 × 2
-
Max Short Circuit Current (A): 26 × 2
Battery Port
-
Max Charge/Discharge Power (kW): 6.9 | 6.9
-
Max Charge/Discharge Current (A): 50
-
Battery Voltage (V): 230
-
Battery Voltage Range (V): 80–495
-
Battery Type: Lithium | Lead
AC Grid Output
-
Max Continuous Power (kVA): 4.6
-
Max Continuous Current (A): 19.5 | 22.5
-
Nominal Grid Voltage (V): 211–264 @ 240 | 183–229 @ 208
-
Nominal Grid Frequency (Hz): 60
-
Output Power Factor: 0.99 adjustable
-
Current THD (%): <3
AC Backup & Generator
-
Max Continuous Power (kVA): 4.6
-
Max Continuous Current (A): 19.5 | 22.5
-
Max Peak Current (A, 10 min): 28.8 | 33.2
-
Max Peak Power (kVA, 10 min): 6.9 | 6.9
-
Nominal AC Voltage L-L (V): 240 | 208
-
Nominal AC Voltage L-N (V): 120 | 120
-
Nominal AC Frequency (Hz): 60
-
Switching Time (ms): <10
-
Voltage THD (%): <3
Efficiency
-
CEC Efficiency (%): 97
-
Max Efficiency (%): 97.6
-
PV to Battery Efficiency (%): 98.1
-
Battery to AC Efficiency (%): 96.8
Protection Features
-
PV Reverse Polarity Protection: Yes
-
Battery Reverse Polarity Protection: Yes
-
Over Current/Voltage Protection: Yes
-
Anti-Islanding Protection: Yes
-
AC Short Circuit Protection: Yes
-
Residual Current Detection: Yes
-
Ground Fault Monitoring: Yes
-
Insulation Resistor Detection: Yes
-
PV Arc Detection: Yes
-
Rapid Shut Down/Disconnect: Yes
-
Enclosure Protection Level: IP65 | NEMA 4X
General Data
-
Cooling: Natural Convection
-
Relative Humidity (%): 0–100
-
Operating Temperature (°C / °F): -25 to 60°C | -77 to 140°F
-
Operating Altitude: <4000 m | <13,123 ft without derating
-
Noise Emission (dB): <25
-
Standby Consumption (W): <10
-
Mounting: Wall Bracket
-
Communication with RSD: SUNSPEC
-
Display & Communication Interfaces: Full Color LED, RS485, CAN, Wi-Fi
Certification & EMC
-
Certifications: UL 1741 SA, CSA 2202 No. 107-01, UL 1998, Rule 21, HECO Rule 14, IP65, CEC
-
EMC Compliance: FCC Part 15 Class B
