Aims Power - 30 Amp MPPT Solar Charge Controller - SCC30AMPPT
Unleash the full potential of your solar system with the AIMS Power Solar Battery Charge Controller, now available for purchase on Appliance Guys. This controller incorporates smart MPPT charging technology, boasting an impressive 97.5-99% efficiency for maximum energy harvest. The automatic tracking algorithm adjusts seamlessly to weather conditions, while temperature... read more
SKU:
SCC30AMPPT
Vendor:
Aims Power
Availability:
Available to order
Product Type:
Solar Charge Controllers
- Regular price
- $119.00
- Regular price
-
$129.00 - Sale price
- $119.00
- Unit price
- per
SHOP WITH CONFIDENCE
APPLIANCE GUYS STANDS BEHIND EVERY TRANSACTION
100%
Satisfaction Guaranteed
Easy Shipping
Price Match
When Will My Item Arrive?
Once shipped, items usually arrive within 3–5 business days. If your item or order is large, it may ship via one of our third-party freight carriers, which deliver from semi trucks with lift gates. Freight delivery is much more complicated than standard parcel shipping — you must schedule a drop-off time, be present for the delivery, and move items from the curb to your residence, among other differences. Sound stressful? If you prepare in advance with ourguide to freight delivery, it doesn’t have to be.
We strongly encourage reading the entire freight delivery guide, but here’s aquick snapshot of what you need to be ready for when you order a large package:- Your freight carrier will call you to schedule a delivery window of about 4–8 hours
- You’re required to be physically present at the specified delivery location during the scheduled window
- Freight shipments are carried in semi trucks, which have lift gates to assist with unloading
- Freight deliveries are dropped off at the curb and no further — not up the driveway, not the porch, not the garage, and most definitely not the backyard — so it’s on you to transport packages to their intended locatio
- For an easier time hauling items to your home or backyard, arrange for at least 2 helpers to be on standby during your delivery window
- You must sign for the shipment to indicate that you’ve accepted the delivery
Again, we recommend reading our entire breakdown of freight delivery so you can become familiar with the process. Trust us when we say that getting caught off guard with the strict requirements of freight delivery can lead to a whole lot of headaches.
This item leaves our warehouse within 30-Day Returns
Return all new, unused, and unassembled items in their original packaging, and we'll give you a full refund minus the cost of the original AND return shipping. Made to order and special order items not applicable for returns.
No Restocking FeeMost companies charge a restocking fee. We just don't do business that way.
Unleash the full potential of your solar system with the AIMS Power Solar Battery Charge Controller, now available for purchase on Appliance Guys. This controller incorporates smart MPPT charging technology, boasting an impressive 97.5-99% efficiency for maximum energy harvest. The automatic tracking algorithm adjusts seamlessly to weather conditions, while temperature compensation protection ensures optimal performance. Ideal for 12 & 24-volt solar systems, it features multistage charging technology with LED indicators for charging status and faults. The LCD display provides crucial information like battery voltage, solar panel details, and charge mode. Backed by a 2-year warranty, it's a reliable choice for your renewable energy needs.
Appliance Guys Exclusive Benefits:
- Lifetime Phone Support: Expert assistance always within reach.
- Open 7 Days a Week: Convenience tailored to your schedule.
- Price Match Guarantee: Shop confidently, knowing you're getting the best deals.
Features
- MPPT technology: Maximizes available power using peak power of the I-V curve
- Quality heatsink cooling: No fans needed, no thermal derating
- Battery type selector: User-defined charging voltage
- 4-stage charging: Ensures efficient battery maintenance

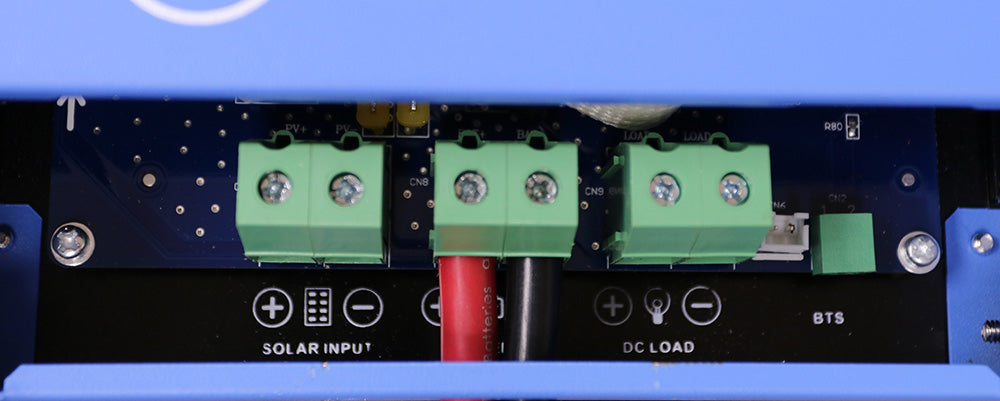

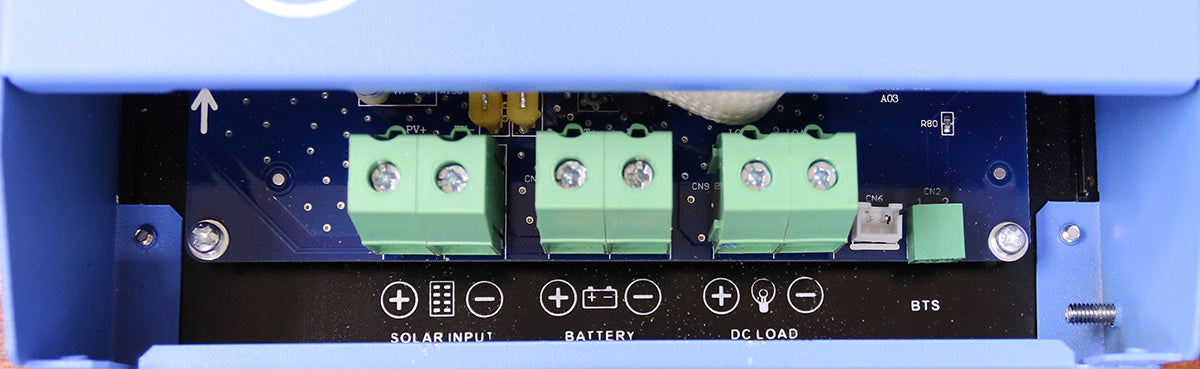

- PV input, battery output, and load control ports: Versatile connectivity
- Stackable: Customize your power setup
- Over-engineered components: Generates less heat for increased reliability
- Efficient up to 99%: Low self-consumption
- Thermal design rugged case: Withstands extreme conditions
- Protections: Overload, short circuit, high/low voltage, auto-correct, over temperature
- Compliance: CE, ETL to UL1741, RoHS compliant, marine-coated
- Mounting holes: Easy installation
Specifications
-
PV Operating Voltage:
- 18-100Vdc @ 12V
- 34-100Vdc @ 24V
-
Rated PV Input:
- 12V – 400 Watts
- 24V – 800 Watts
- Maximum Battery Current: 30 Amps
- DC Load Port: 30 Amps
- Max PV Open Circuit Voltage: 100Vdc
- Self Power Consumption: <2 Watts
- Efficiency: 97%
- Protections: Overload, short circuit, high voltage, high temperature, low voltage, auto-correct
Charging Specifications:
- Battery Types: Gel, sealed, AGM, flooded, lithium, user-defined (adjustable voltage)
- 4 Stage Charging: Bulk, absorption, float, and equalize
- Bulk Charge Voltage: Sealed 14.4V, AGM/Gel 14.2V, flooded 14.6V, user-defined 10-15V
- Float Charge Voltage: Sealed/AGM/Gel 13.7V, flooded 13.6V, user-defined 10-15V
- Equalize Charge Voltage: Sealed 14.6V, AGM/Gel 14.8V, flooded 14.8V, user-defined 10-15V
- Low Voltage Reconnection: 12.5V
- Low Voltage Disconnect Voltage: 10.5V (adjustable 10.5-12.5V)
Mechanical Specifications:
- Enclosure: IP43 protection, metal
- Cooling: Heatsink
- Humidity: 100% non-condensing
- Temperature Compensation: -5mV⁰C / 2V with BTS
- Temperature Range: -25⁰C to 60⁰C or -13⁰F to 140⁰F
- Conformal Coated: For marine environments
- Wire Knockouts: 1.25”
- Unit Weight: 5 lbs
- Boxed Weight: 6 lbs
- Dimensions: 8.25”L x 7”W x 2.75”H
- Warranty: 2 years
- Certifications: ETL to UL1741, CE, RoHS, CETL
