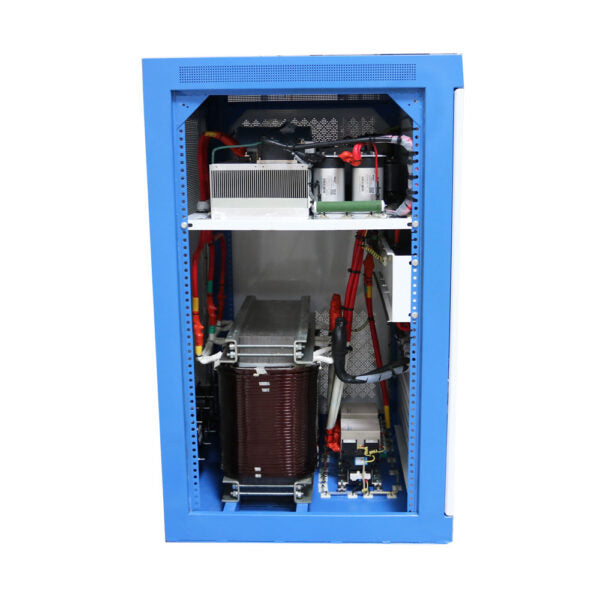

Aims Power - 30KW 30,000 PURE SINE POWER INVERTER CHARGER 300 VDC 208 VAC THREE PHASE
Introducing the NEW AIMS extra large power inverter charger product line in 240 split phase or 208 three phase. This off-grid, back up power inverter is perfect for businesses, large homes, farms or other applications that require huge amounts of back-up power. These units have a large DC input range... read more
SKU:
PICOGLF30KW300V2083P
Vendor:
Aims Power
Availability:
Out Of Stock
Product Type:
Converter/Charger
FREE SHIPPING
- Regular price
- $8,400.00
- Regular price
-
$8,900.00 - Sale price
- $8,400.00
- Unit price
- per
SHOP WITH CONFIDENCE
APPLIANCE GUYS STANDS BEHIND EVERY TRANSACTION
100%
Satisfaction Guaranteed
Easy Shipping
Price Match
When Will My Item Arrive?
Once shipped, items usually arrive within 3–5 business days. If your item or order is large, it may ship via one of our third-party freight carriers, which deliver from semi trucks with lift gates. Freight delivery is much more complicated than standard parcel shipping — you must schedule a drop-off time, be present for the delivery, and move items from the curb to your residence, among other differences. Sound stressful? If you prepare in advance with ourguide to freight delivery, it doesn’t have to be.
We strongly encourage reading the entire freight delivery guide, but here’s aquick snapshot of what you need to be ready for when you order a large package:- Your freight carrier will call you to schedule a delivery window of about 4–8 hours
- You’re required to be physically present at the specified delivery location during the scheduled window
- Freight shipments are carried in semi trucks, which have lift gates to assist with unloading
- Freight deliveries are dropped off at the curb and no further — not up the driveway, not the porch, not the garage, and most definitely not the backyard — so it’s on you to transport packages to their intended locatio
- For an easier time hauling items to your home or backyard, arrange for at least 2 helpers to be on standby during your delivery window
- You must sign for the shipment to indicate that you’ve accepted the delivery
Again, we recommend reading our entire breakdown of freight delivery so you can become familiar with the process. Trust us when we say that getting caught off guard with the strict requirements of freight delivery can lead to a whole lot of headaches.
This item leaves our warehouse within 30-Day Returns
Returns: Return all new, unused, and unassembled items in their original packaging, and we’ll give you a full refund minus the cost of the original AND return shipping. Made to order and special order items are not applicable for returns.
Restocking Fee: A 20% restocking fee will be applied to returned items.
Introducing the NEW AIMS extra large power inverter charger product line in 240 split phase or 208 three phase. This off-grid, back up power inverter is perfect for businesses, large homes, farms or other applications that require huge amounts of back-up power. These units have a large DC input range allowing you to create your own DC input source such as solar, wind, hydro and deep cycle batteries. The higher DC input enables you to operate more efficiently when using this inverter. Its modular, simple and easy design allows for convenient access for maintenance and adjustments. The IPM provides high efficiency and stable performance prolonging the overall life of this inverter. The inverter also includes a power LCD display monitoring DC input, output frequency, phase voltage, phase current, AC bypass input voltage, output power kWH, time and date, temperature and fault codes.
Features
- Pure sine wave technology
- DC to AC power inverter
- Simple design for convenient maintenance
- LCD panel
- 50 and 60 Hz
- Adjustable programmable output voltage: -40% to +20% of rated voltage
- Adjustable DC input voltage, over voltage, under voltage, recovery time can all be set via the LCD panel
- Step-down Voltage and Variable Frequency start up modes
- Efficiency – >94%
- Low frequency preventing RF interference
- Low idle consumption
- AC bypass input function
- Ideal for DC EMerge 380-volt DC
- RS485 remote monitoring optional
- Certifications: CE, CEC, CSA22.2, UL1741 and ERAC certified
Specifications
DC Input
- DC input – 300 volt
- DC input range – 200-600 Vdc
- Rated current amps – 100 A
AC Input – 120 / 208 Vac
AC Output
- 30,000 – 30kw
- Pure sine wave
- 208 VAC (+- 3%) 110/120/220/230/240/280/400/415/440 can be customized
- Three phase L1 + L2 + L3 + N + Earth
- Current: 83.3 A phase current
- Adjustable 50/60 hz
- Power Factor: >0.95
- Inverter efficiency: >94%
- LCD Display
- Voltage accuracy – Load balancing<1%, Unbalance <5%
- THD: linear load ,2%, nonlinear load >3%
- No load amps: 2% of inverter size depending on DC voltage (1000 watts / DC input voltage = amps)
Protections
- Overload 150% – 5 seconds, 120% for 35 seconds
- Input reverse polarity
- Under voltage,
- Over voltage
- Output over current
- Short circuit
- Over temperature
- Fan cooled – Always on
- Short circuit: no automatic recovery. Restart required
- <50dB
- Operating temperature: -25 to 55 Celsius (-13 to 131 Fahrenheit)
- Humidity: 90% non-condensing
- Dimensions: 33.5″D x 33.5″W x 51.2″H
- Weight: 926 lbs
- CE, UL 1741 and CS22.2
