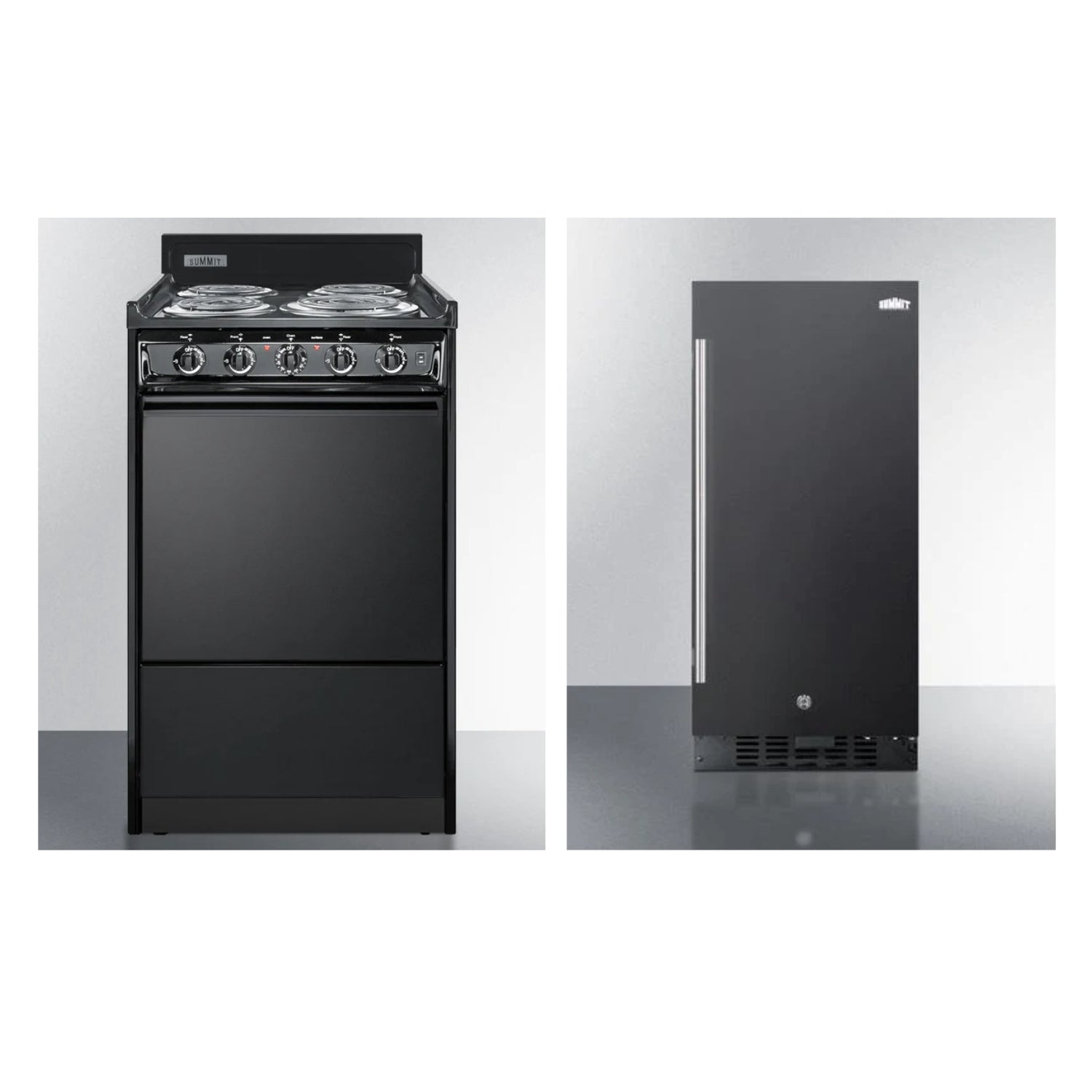

Summit - 20" Wide Electric Coil Range and 15" Wide All-refrigerator for Built-in or Freestanding Use with Digital Controls, LED Light, Right Door Swing, Lock and Black Exterior Finish Bundle
Vendor:
Summit
Summit - 15" Wide Built-in or Freestanding All-Refrigerator and 24" Wide Gas Range, Open Burner Bundle
$2,055.00
$1,592.85
Refrigerator Details Summit offers the industry's largest selection of 32" high ADA compliant appliances, with quality choices for built-in or freestanding use in 15" wide spaces.The ALR15B is a 2.2 cu.ft. all-refrigerator with a front-breathing system for built-in use and jet black finish to suit all settings. The user-reversible door... read more
SKU:
TEM110C+ALR15B
Vendor:
Summit
Availability:
32
Qty In Stock
Product Type:
Kitchen Package Bundle
FREE SHIPPING
- Regular price
- $1,820.83
- Regular price
-
$1,916.66 - Sale price
- $1,820.83
- Unit price
- per
SHOP WITH CONFIDENCE
APPLIANCE GUYS STANDS BEHIND EVERY TRANSACTION
100%
Satisfaction Guaranteed
Easy Shipping
Price Match
When Will My Item Arrive?
Once shipped, items usually arrive within 3–5 business days. If your item or order is large, it may ship via one of our third-party freight carriers, which deliver from semi trucks with lift gates. Freight delivery is much more complicated than standard parcel shipping — you must schedule a drop-off time, be present for the delivery, and move items from the curb to your residence, among other differences. Sound stressful? If you prepare in advance with ourguide to freight delivery, it doesn’t have to be.
We strongly encourage reading the entire freight delivery guide, but here’s aquick snapshot of what you need to be ready for when you order a large package:- Your freight carrier will call you to schedule a delivery window of about 4–8 hours
- You’re required to be physically present at the specified delivery location during the scheduled window
- Freight shipments are carried in semi trucks, which have lift gates to assist with unloading
- Freight deliveries are dropped off at the curb and no further — not up the driveway, not the porch, not the garage, and most definitely not the backyard — so it’s on you to transport packages to their intended locatio
- For an easier time hauling items to your home or backyard, arrange for at least 2 helpers to be on standby during your delivery window
- You must sign for the shipment to indicate that you’ve accepted the delivery
Again, we recommend reading our entire breakdown of freight delivery so you can become familiar with the process. Trust us when we say that getting caught off guard with the strict requirements of freight delivery can lead to a whole lot of headaches.
This item leaves our warehouse within 30-Day Returns
Returns: Return all new, unused, and unassembled items in their original packaging, and we’ll give you a full refund minus the cost of the original AND return shipping. Made to order and special order items are not applicable for returns.
Restocking Fee: A 20% restocking fee will be applied to returned items.
Refrigerator Details

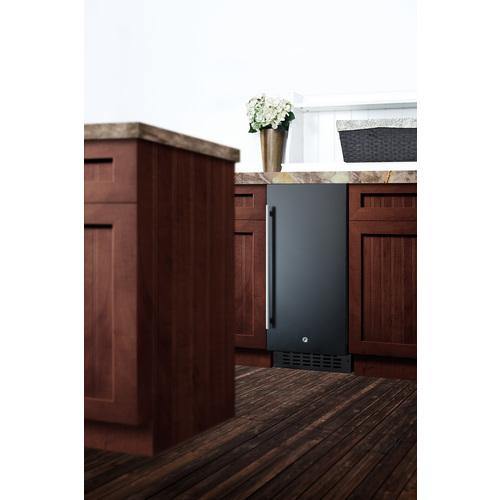

Summit offers the industry's largest selection of 32" high ADA compliant appliances, with quality choices for built-in or freestanding use in 15" wide spaces.
The ALR15B is a 2.2 cu.ft. all-refrigerator with a front-breathing system for built-in use and jet black finish to suit all settings. The user-reversible door includes a front lock and side-mounted handle in brushed stainless steel. This unit has a sealed back for easier cleanup. At just under 32" high, it's perfect for fitting under lower counters following ADA guidelines.
Inside, the ALR15B features a jet black finish and convenient frost-free operation for minimum maintenance. Fan-forced cooling helps to stabilize the temperature inside. Adjustable glass shelves offer spill-proof storage and two door racks are ideal for keeping condiments and bottles within reach. This unit comes with a digital control panel for easy temperature management, with a temperature readout viewable in Celsius and Fahrenheit. Additional features include an open door and high temperature alarm, temperature memory function, and Sabbath mode to allow users to disable certain electrical functions during periods of observance. Recessed LED lighting offers an attractive, energy efficient view.
The ALR15B is approved for both residential and commercial use, and is ETL-S listed to NSF-7 commercial standards. Additional choices for 15" wide spaces, as well as ADA compliant applications, can be found in Summit's extensive product catalog. Browse our website for more options.
Features
- ADA Compliant Design 32" height allows easy installation under lower ADA compliant counters
- Commercially Approved ETL-S listed to NSF-7 Standards for use in commercial establishments
- Built In Capable Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Factory Installed Lock Keyed lock for a secure interior
- Digital Thermostat Electronic controls located inside the unit for precise temperature management
- Digital Display Temperature readout can be shown in Celsius or Fahrenheit
- LED Lighting Gentle illumination with an on/off switch
- Frost-Free Operation No-frost operation for minimum user maintenance
- Adjustable Glass Shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Door Storage Two racks offer the perfect storage solution for tall bottles and condiments
- Reversible Door User-reversible door swing on the refrigerator for added flexibility
- Professional Handle Stainless steel handle completes the professional look
- Flush Back Space saving design that is easy to clean
- Sabbath Mode Settings Optional setting lets you disable the lighting and alarm for up to 96 hours
- Open Door Alarm Audible alarm will sound if the door is left open longer than one minute
- High Temperature Alarm High temperature alarm sounds if the unit's interior goes out of the recommended range
- Right Angle Plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Integrated Hinge Door hinge adds no additional height, making it easier to install under a counter
- Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss
- Fully Finished Black Cabinet Allows the unit to be used freestanding
- 100% CFC Free Environmentally friendly design without ozone-damaging chemicals
Specifications
| Height of Cabinet | 31.5" (80 cm) |
| Width | 14.75" (37 cm) |
| Depth | 23.5" (60 cm) |
| Capacity | 2.2 cu.ft. (62 L) |
| Defrost Type | Frost-Free |
| Door | Black |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 240.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 55.0 lbs. (25 kg) |
| Shipping Weight | 60.0 lbs. (27 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
Refrigerator Features
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 2 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.78oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36°F to 43°F |
Dimensions
| Interior Height | 23.0" (58 cm) |
| Interior Width | 10.5" (27 cm) |
| Interior Depth | 17.5" (44 cm) |
| Compressor Step Height | 3.5" (9 cm) |
| Compressor Step Width | 10.5" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
Download & Manuals
Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

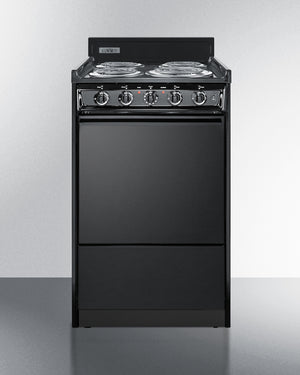

The TEM110C is an apartment-sized 220V electric range sized at just 20" wide, with a generous 2.46 cu.ft oven interior that can accommodate large trays. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens.
Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines.
The TEM110C comes in a jet black finish to suit any kitchen setting. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-wire range cord can be installed by your electrician).
With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 24", 30", and 36" wide fits.
Features
- Made in the USA: Designed and constructed domestically
- Slim 20 inch width: Shallower fit is ideal for L-shaped and galley kitchens
- 24 inch depth: Shallower fit is ideal for L-shaped and galley kitchens
- Storage compartment: Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
- Four coil elements: Three standard 6" and one large 8" element
- Safety burners with low wattage outputs: Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
- Chrome drip pans: Each element includes a removable chrome pan for easier cleaning
- Waist-high broiler: Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
- Adjustable oven racks: Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
- Recessed oven door: Smart design limits the depth and protects adjacent cabinets
- Porcelain and steel construction: Solid construction built to hold up to everyday use
- Upfront controls: All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
- Push-to-turn burner knobs: Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
- Indicator lights: Control panel includes an 'on' light for the oven and burners for added safety when using the range
- Removable oven door and range top: Allows for easier cleaning as needed
- Broiler tray included: Two-piece porcelain broiler tray with grease well
- Anti-tip bracket: Included for user installation to help prevent tipping
- Cord not included: Compatible with standard 40 amp 3 or 4-wire range cords
- ADA compliant: Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
Specifications
| Height of Cabinet | 40.0" (102 cm) |
| Width | 20.0" (51 cm) |
| Depth | 24.0" (61 cm) |
| Door | Black |
| Cabinet | Black |
| US Electrical Safety | CSA |
| Voltage/Frequency | 220 V AC/60 Hz |
| Weight | 140.0 lbs. (64 kg) |
| Shipping Weight | 147.0 lbs. (67 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101018577 |
Dimensions & Weight
| Oven Capacity | 2.46 cu.ft. (70 L) |
| Cooktop Surface | Porcelain |
| Element Type | Coils |
| Number of Elements | 4 |
| Element #1 Size | 6.0" (15 cm) |
| Element #1 Wattage | 675.0 |
| Element #2 Size | 6.0" (15 cm) |
| Element #2 Wattage | 675.0 |
| Element #3 Size | 6.0" (15 cm) |
| Element #3 Wattage | 675.0 |
| Element #4 Size | 8.0" (20 cm) |
| Element #4 Wattage | 950.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Backguard | Yes |
| Cleaning Type | Manual |
| Oven Rack Qty | 2 |
| Oven Interior Height | 14.0" (36 cm) |
| Oven Interior Width | 16.0" (41 cm) |
| Oven Interior Depth | 19.0" (48 cm) |
| Storage Compartment | Yes |
| Broiler Location | Inside Oven |
| Oven Door | Black |
Downloads & Manual
- BROCHURE: TEM110C.pdf
- USE & CARE: Electric_Ranges__Wall_Ovens____Cooktops_Use___Care_rev_0417.pdf
- OTHER: Summit_Anti-Tip_Bracket.pdf
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
Refrigerator Details
Summit offers the industry's largest selection of 32" high ADA compliant appliances, with quality choices for built-in or freestanding use in 15" wide spaces.
The ALR15B is a 2.2 cu.ft. all-refrigerator with a front-breathing system for built-in use and jet black finish to suit all settings. The user-reversible door includes a front lock and side-mounted handle in brushed stainless steel. This unit has a sealed back for easier cleanup. At just under 32" high, it's perfect for fitting under lower counters following ADA guidelines.
Inside, the ALR15B features a jet black finish and convenient frost-free operation for minimum maintenance. Fan-forced cooling helps to stabilize the temperature inside. Adjustable glass shelves offer spill-proof storage and two door racks are ideal for keeping condiments and bottles within reach. This unit comes with a digital control panel for easy temperature management, with a temperature readout viewable in Celsius and Fahrenheit. Additional features include an open door and high temperature alarm, temperature memory function, and Sabbath mode to allow users to disable certain electrical functions during periods of observance. Recessed LED lighting offers an attractive, energy efficient view.
The ALR15B is approved for both residential and commercial use, and is ETL-S listed to NSF-7 commercial standards. Additional choices for 15" wide spaces, as well as ADA compliant applications, can be found in Summit's extensive product catalog. Browse our website for more options.
Features
- ADA Compliant Design 32" height allows easy installation under lower ADA compliant counters
- Commercially Approved ETL-S listed to NSF-7 Standards for use in commercial establishments
- Built In Capable Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Factory Installed Lock Keyed lock for a secure interior
- Digital Thermostat Electronic controls located inside the unit for precise temperature management
- Digital Display Temperature readout can be shown in Celsius or Fahrenheit
- LED Lighting Gentle illumination with an on/off switch
- Frost-Free Operation No-frost operation for minimum user maintenance
- Adjustable Glass Shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Door Storage Two racks offer the perfect storage solution for tall bottles and condiments
- Reversible Door User-reversible door swing on the refrigerator for added flexibility
- Professional Handle Stainless steel handle completes the professional look
- Flush Back Space saving design that is easy to clean
- Sabbath Mode Settings Optional setting lets you disable the lighting and alarm for up to 96 hours
- Open Door Alarm Audible alarm will sound if the door is left open longer than one minute
- High Temperature Alarm High temperature alarm sounds if the unit's interior goes out of the recommended range
- Right Angle Plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Integrated Hinge Door hinge adds no additional height, making it easier to install under a counter
- Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss
- Fully Finished Black Cabinet Allows the unit to be used freestanding
- 100% CFC Free Environmentally friendly design without ozone-damaging chemicals
Specifications
| Height of Cabinet | 31.5" (80 cm) |
| Width | 14.75" (37 cm) |
| Depth | 23.5" (60 cm) |
| Capacity | 2.2 cu.ft. (62 L) |
| Defrost Type | Frost-Free |
| Door | Black |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 240.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 55.0 lbs. (25 kg) |
| Shipping Weight | 60.0 lbs. (27 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
About the Manufacturer
Manufacturer's Name Summit
Since 1969, Felix Storch, Inc. (FSI) has been manufacturing and distributing specialty major appliances to the residential, professional, commercial, hospitality, and scientific markets. Through our Summit Medical and Accucold® brand, we manufacture and distribute refrigeration for pharmaceutical, scientific, medical, and laboratory applications.
We carry over 600 basic models of specialty refrigerators, freezers and cooking appliances, including the industry's largest collection of built-in undercounter and ADA compliant models. Our residential and professional product line includes unique choices for smaller kitchens, with a large selection of frost-free refrigerators, gas & electric ranges and cooktops, wine cellars, beer dispensers, slim-fitting laundry and dishwashers, and weatherproof outdoor appliances. We also serve the commercial and foodservice market with beverage centers, display freezers, and other appliances that comply with NSF standards.
- RESIDENTIAL & PROFESSIONAL COLLECTION: For over 45 years, Summit Appliance has been the industry's answer to small kitchen spaces. Our frost-free refrigeration collection is specially designed for apartment and smaller kitchens, with a variety of slim and counter deep footprints not found in big box stores.
- COMMERCIAL LINE: Summit Commercial products include affordable storage freezers, fully assembled dipping cabinets, beer and wine kegerators, and reach-in refrigerators and freezers for use by any foodservice establishment. We also specialize in beverage merchandisers, icemakers, wine cellars, undercounter refrigeration, and back bar storage equipment in suitable footprints for smaller kitchen, bar, or retail spaces. Summit Commercial products meet UL and NSF standards for foodservice use.
- MEDICAL APPLIANCES: Our Accucold® division offers an extensive selection of refrigeration products aimed at the pharmaceutical, laboratory, medical, and life science markets. Products range from general purpose refrigerators and freezers with locks to laboratory chest freezers designed to store sensitive frozen materials at temperatures as low as -45ºC.
We work hard to expedite the order and delivery process, offering next day shipping on virtually all in-stock products. For the Northeast region of the United States, we deliver through own fleet of FSI trucks.
