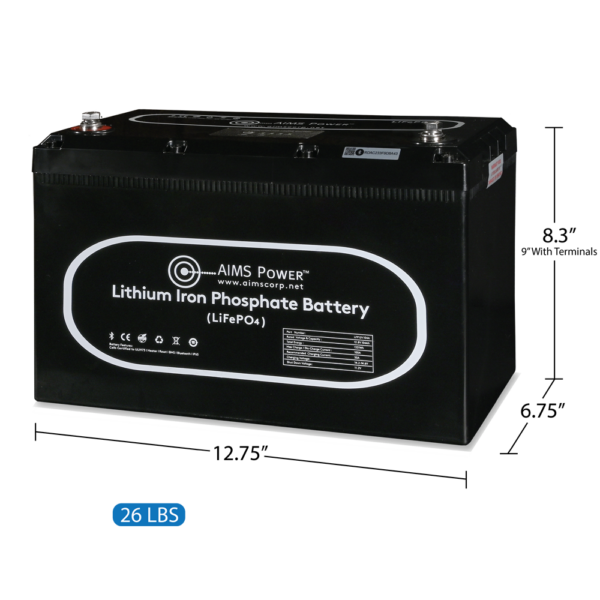

Aims Power - Lithium Battery 104Ah with Wake Up, Heater & BT Monitoring 12V LiFePO4
Vendor:
Appliance Guys
Aims Power - Lithium Battery 135Ah with Wake Up, Heater & BT Monitoring 12V LiFePO4
$769.00
$747.00
Vendor:
Aims Power
Aims Power - MC-4 Compatible Inline Fuse 30A Male & Female Ends Waterproof
$22.00
$21.00
Advanced 12V Lithium Battery with Heater & Wake-Up Function The AIMS Power 104A LiFePO4 battery features a built-in HEATER & WAKE-UP function, enabling reliable performance in cold climates and recovery from over-discharge without external jump-starting. This lithium iron phosphate battery delivers constant output voltage, ensuring more efficient energy use and... read more
- Regular price
- $530.00
- Regular price
-
$549.00 - Sale price
- $530.00
- Unit price
- per
SHOP WITH CONFIDENCE
APPLIANCE GUYS STANDS BEHIND EVERY TRANSACTION
100%
Satisfaction Guaranteed
Easy Shipping
Price Match
When Will My Item Arrive?
Once shipped, items usually arrive within 3–5 business days. If your item or order is large, it may ship via one of our third-party freight carriers, which deliver from semi trucks with lift gates. Freight delivery is much more complicated than standard parcel shipping — you must schedule a drop-off time, be present for the delivery, and move items from the curb to your residence, among other differences. Sound stressful? If you prepare in advance with ourguide to freight delivery, it doesn’t have to be.
We strongly encourage reading the entire freight delivery guide, but here’s aquick snapshot of what you need to be ready for when you order a large package:- Your freight carrier will call you to schedule a delivery window of about 4–8 hours
- You’re required to be physically present at the specified delivery location during the scheduled window
- Freight shipments are carried in semi trucks, which have lift gates to assist with unloading
- Freight deliveries are dropped off at the curb and no further — not up the driveway, not the porch, not the garage, and most definitely not the backyard — so it’s on you to transport packages to their intended locatio
- For an easier time hauling items to your home or backyard, arrange for at least 2 helpers to be on standby during your delivery window
- You must sign for the shipment to indicate that you’ve accepted the delivery
Again, we recommend reading our entire breakdown of freight delivery so you can become familiar with the process. Trust us when we say that getting caught off guard with the strict requirements of freight delivery can lead to a whole lot of headaches.
This item leaves our warehouse within 30-Day Returns
Returns: Return all new, unused, and unassembled items in their original packaging, and we’ll give you a full refund minus the cost of the original AND return shipping. Made to order and special order items are not applicable for returns.
Restocking Fee: A 20% restocking fee will be applied to returned items.
Advanced 12V Lithium Battery with Heater & Wake-Up Function

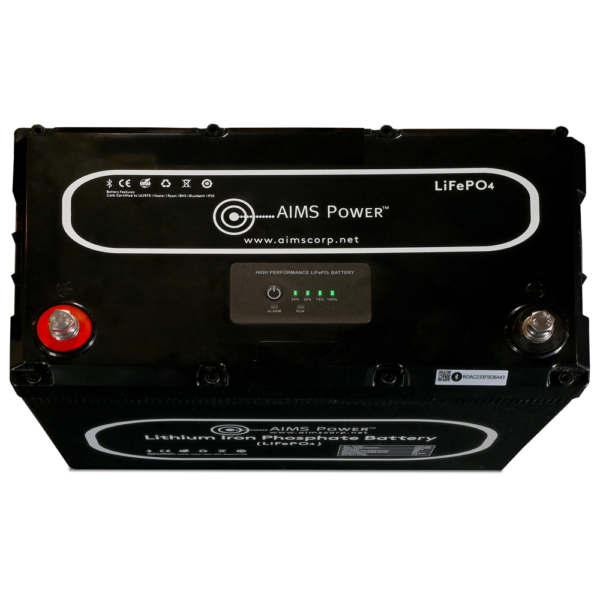

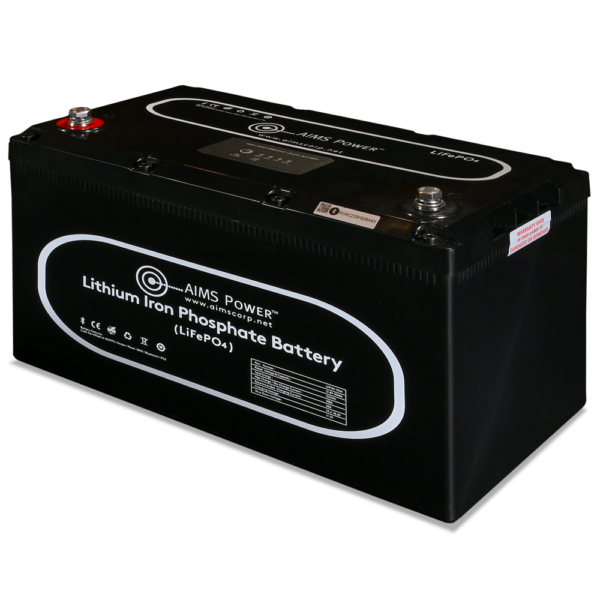

The AIMS Power 104A LiFePO4 battery features a built-in HEATER & WAKE-UP function, enabling reliable performance in cold climates and recovery from over-discharge without external jump-starting. This lithium iron phosphate battery delivers constant output voltage, ensuring more efficient energy use and eliminating the need for complex voltage regulation systems. Designed to maximize cycle life and safety, it offers improved thermal stability over traditional battery types. With a compact, lightweight form, it’s a direct fit replacement for 12V lead acid, AGM, or Gel batteries in RVs, golf carts, boats, off-grid systems, and commercial vehicles. It’s not intended for engine starting but excels in deep-cycle applications. The internal heater supports effective cold-weather charging, making it ideal for varied environments. With enhanced safety, easy maintenance, and long-term durability, this battery meets IEC standards for industrial use and is supported by a 10-year pro-rated warranty for added peace of mind.
Features
-
Power Management: Automatic wake-up function for over-discharged/low-voltage batteries; no parallel battery or special charger required
-
Cold Weather Charging: Built-in automatic heater for low-temperature charging; no external wiring needed
-

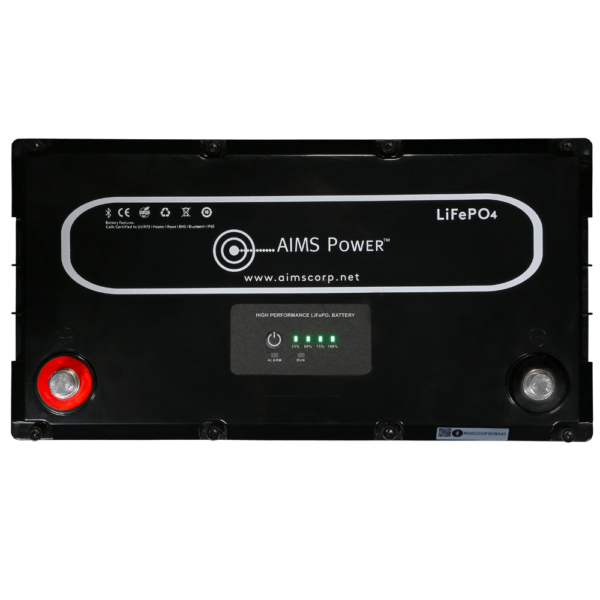

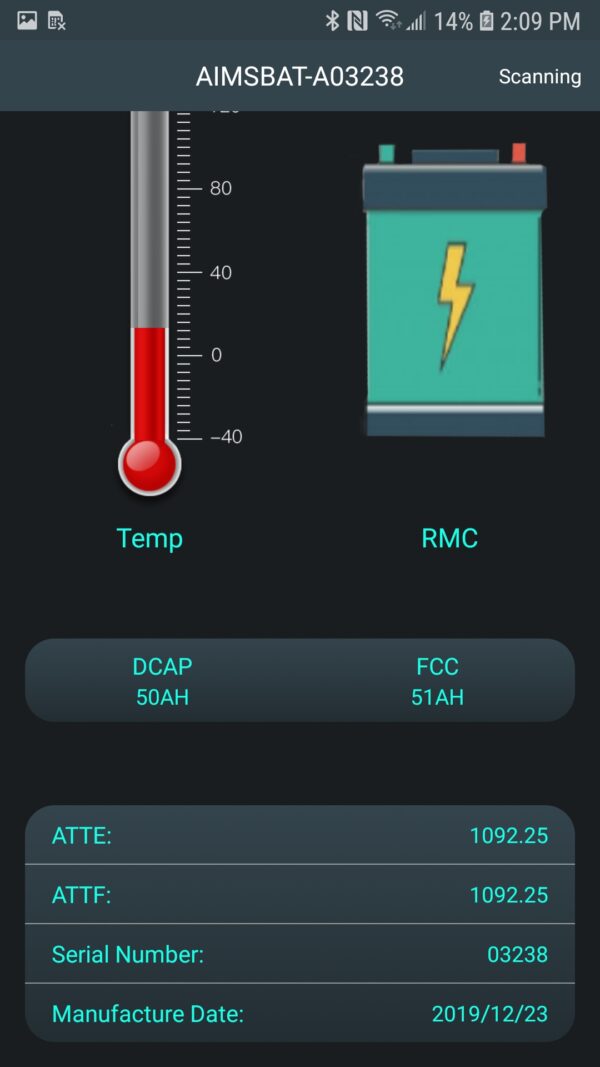

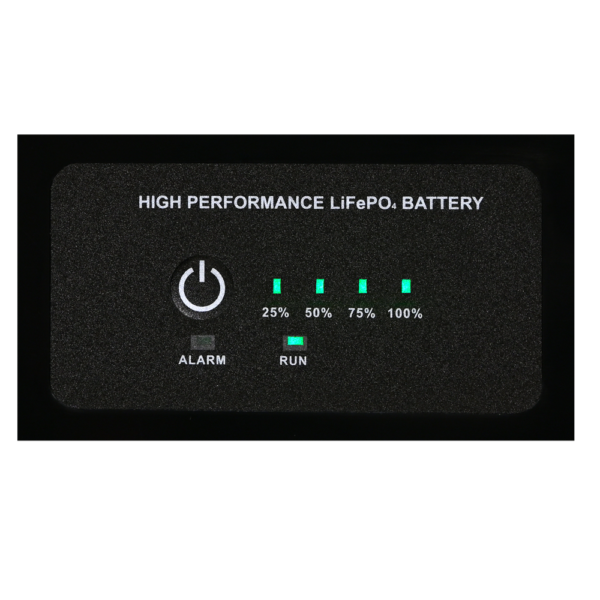

Monitoring: Integrated display and Bluetooth monitoring for real-time status checks
-
Battery Life: Extremely high charge/discharge cycle count; >10-year lifespan with proper maintenance
-
Warranty: 10-year warranty for long-term peace of mind
-
Temperature Performance: Wide operating temperature range with superior high-temperature performance
-
Safety:
-
BMS safety protection with individually fused cells
-
Resistant to short circuits
-
Will not ignite from physical damage or excessive thermal exposure
-
Safe under over-charge and over-discharge conditions
-
-
Environmental Impact: Green energy solution with no metal contaminants
-
Maintenance: Low maintenance with little self-discharge
-
Capacity: High amp output with stable voltage delivery
-
Portability: Lightweight design with a convenient removable carry handle
-
Durability: IP65 rated for dust and water resistance
Specifications
Electrical Specifications
-
Nominal Voltage: 12.8V
-
Nominal Capacity (@ 0.5C, 77°F): 104Ah
-
Minimum Capacity (@ 0.5C, 77°F): 95Ah
-
Watt Hours: 1280 Wh
-
Expected Cycle Life: >4800 cycles (1C charge/discharge, 77°F, 80% DOD)
Charging & Discharging
-
Charge Method: Smart charger, constant current/constant voltage
-
Charge Voltage Range: 14.2 – 14.6V (Max 14.6V)
-
Continuous Charge Current: 100A Max
-
Continuous Discharge Current: 100A Max
-
Peak Instant Discharge (10 sec): 200A
-
Over Voltage Shutdown: 14.8V ± 0.2V
-
Discharge Cut-Off Voltage: 11.2V ± 0.5V
Temperature Ratings
-
Charge/Discharge Temperature: -4°F to 131°F (heater included)
-
Storage Temperature: -4°F to 113°F
-
Self Discharge (50% SOC): < 3% per month
Physical Specifications
-
Dimensions: 12.75″L x 6.75″W x 8.3″H (9″H w/terminals)
-
Weight: 26 lb
-
Shipping Weight: 27 lb
-
Group Size: 31
-
Battery Post Size: 5/16″ 8M
BMS Operation & Protections
Over Charge Protection
-
Alarm Voltage: 3.55V ± 0.05V/cell (14V pack)
-
Protection Voltage: 3.70V ± 0.05V/cell (14.8V pack)
-
Release Voltage: 3.45V ± 0.05V/cell (13.8V pack)
-
Detection Delay: 1000 ms
Over Discharge Protection
-
Alarm Voltage: 2.8V ± 0.05V/cell (11.2V pack)
-
Protection Voltage: 2.5V ± 0.10V/cell (10V pack)
-
Release Voltage: 2.8V/cell (11.2V pack)
-
Detection Delay: 1000 ms
Over Current Protection
-
Charge Alarm Current: 60A
-
Charge Protection Current: 110A
-
Charge Detection Delay: 15 sec
-
Charge Release: Auto after 1 min (up to 3 retries or charging resumes)
-
Discharge Protection Current: 115A
-
Discharge Detection Delay: 15 sec
-
Discharge Release: Auto after 1 min (up to 3 retries or charging resumes)
Temperature Protections
-
Charge Low Temp Alarm: 7°C | 44°F
-
Charge Low Temp Cutoff: 0°C | 32°F
-
Charge Low Temp Release: 5°C | 41°F
-
Charge High Temp Alarm: 50°C | 122°F
-
Charge High Temp Cutoff: 55°C | 131°F
-
Charge High Temp Release: 45°C | 113°F
-
Discharge Low Temp Alarm: -10°C | 14°F
-
Discharge Low Temp Cutoff: -20°C | -4°F
-
Discharge Low Temp Release: -17°C | 1°F
-
Discharge High Temp Alarm: 55°C | 131°F
-
Discharge High Temp Cutoff: 60°C | 140°F
-
Discharge High Temp Release: 50°C | 122°F
Additional Protections
-
Polarity Reverse Protection: Yes
-
Short Circuit Protection: Yes
