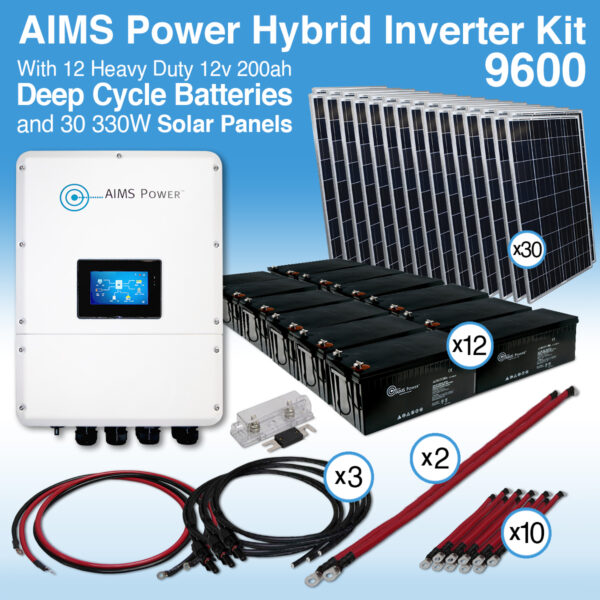

Features

Power Management:

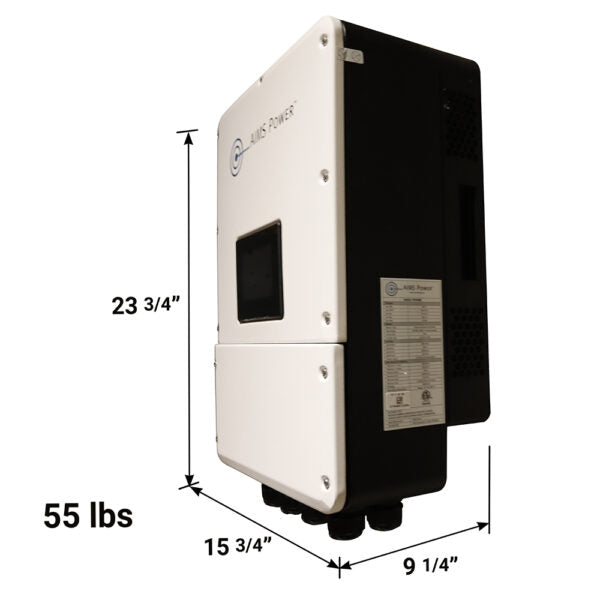

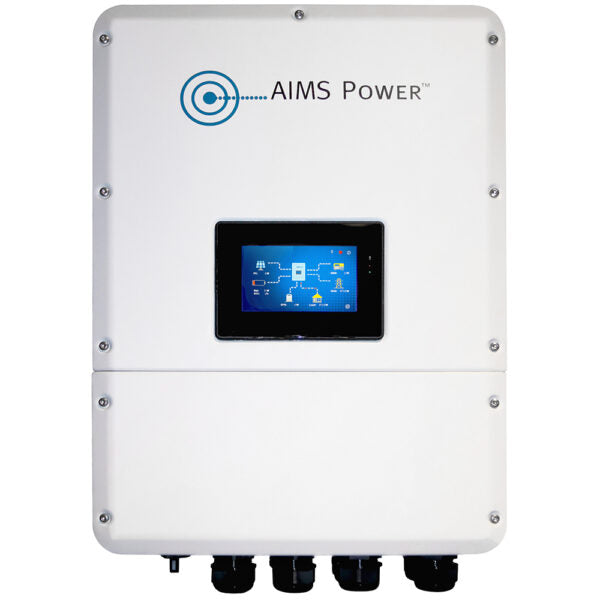

• Inverter Type: Hybrid inverter charger

• Inverter Capacity: 9600 watts

• Inverter to Battery Cables: 20-foot set

Solar Power Generation:

• Solar Panel Type: Monocrystalline

• Panel Wattage: 330 watts each

• Panel Quantity: 30 panels

• PV Wiring: All necessary PV wires included

Battery System:

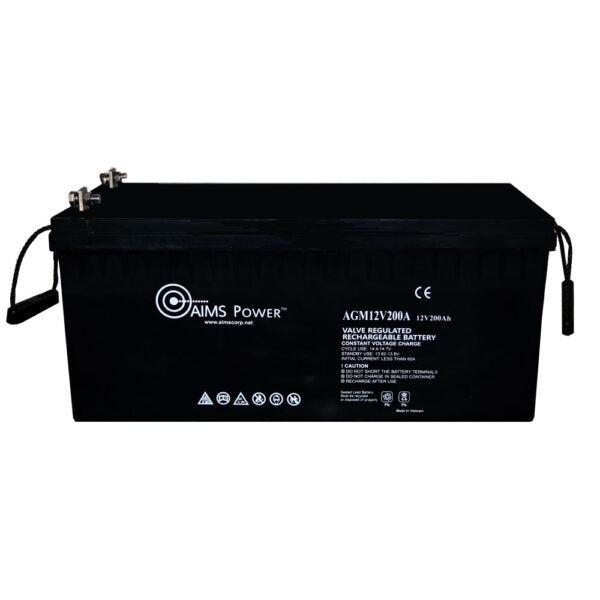

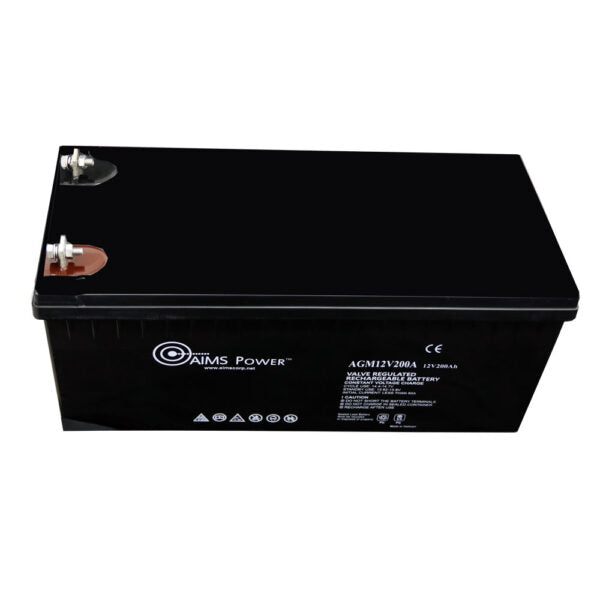

• Battery Type: 12V AGM

• Battery Capacity: 200 amp-hour each

• Battery Quantity: 12 batteries

• Jumper Cables: 1-foot cables for series battery connection

• Battery Series Cables: 3-foot cables for extended series configuration

Safety and Protection:

• Fuse: Included

• Fuse Holder: Included

Performance & Efficiency

• AGM Technology: Enables up to 99% gas recombination and eliminates the need for electrolyte maintenance or water refills

• Enhanced Cycles: Delivers 20% more charge/discharge cycles than standard batteries

• High Power Density: Computer-designed lead calcium tin alloy grid ensures robust energy output

• Low Self-Discharge: Retains charge longer during periods of non-use

Durability & Longevity

• Thick Plate Design: Reduces fluid expansion during freezing conditions

• Long Service Life: Reliable for both float and cyclic applications

• Maintenance-Free: Operates without the need for ongoing maintenance

• 5-Year Warranty: Backed by a substantial service guarantee

Design & Handling

• Carry Handle: Easy to transport and position

• Flexible Mounting: Can be installed in any orientation

Certifications & Safety

• UL-Recognized: Certified for safety and reliability

• Air Transport Approved: Complies with IATA/ICAO Special Provision A67

Runtime Estimates (Fully Charged, No Solar Input)

• 4600W Inverter:

  • ~3 hours at 50% depth of discharge

  • ~6 hours at 100% depth of discharge (not recommended)

• 9600W Inverter:

  • ~1.5 hours at 50% depth of discharge

  • ~3 hours at 100% depth of discharge (not recommended)

Specifications

Electrical Specifications:

• Maximum Power: 330 Watt

• Optimum Power Voltage (Vmp): 33.9 V

• Optimum Operating Current (Imp): 9.73 A

• Open Circuit Voltage (Voc): 41.5 V

• Short Circuit Current (Isc): 10.22 A

• Fill Factor (FF): 70–76%

• Bypass Diode Rating: 10 A

• Tolerance Wattage: 0–3 Watts

Solar Cell & Module Efficiency:

• Cell Type: 158.75 x 158.75 mm Mono

• Number of Cells: 60 (6x10)

• Cell Efficiency: 21.47%

• Module Efficiency: 19.78%

Thermal Characteristics:

• Temperature Coefficient (Isc): -0.048 %/°C

• Temperature Coefficient (Voc): -0.29 %/°C

• Temperature Coefficient (Pm): -0.37 %/°C

• Operating Temperature Range: -40°C to +80°C

Mechanical & Structural:

• Front Glass Thickness: 3.2 mm

• Surface Load Capacity: 6000 Pa

• Allowable Hail Load: 45 mm @ 30.7 m/s

• Cable Length: 41 inches

• Module Dimensions: 65.35 x 39.37 x 1.4 in

• Panel Weight: 39.7 lb (Crate of 6: 310 lb)

Performance & Warranty:

• Standard Test Conditions: AM1.5, 1000W/m², 25±2°C

• Warranty: 91.2% output at 12 years, 80.6% at 25 years
