Aims Power - Dual Battery Sensing Isolator 300 Amp – Automatic
Vendor:
Aims Power
Aims Power - Remote Battery Monitor 500 Amp for Lithium and Most Battery Types up to 80V
$186.00
$164.00
Dual Battery Sensing Isolator – Smart Power Management The Dual Battery Sensing Isolator offers a safe, automatic, and cost-effective solution for managing your vehicle’s dual battery system. It continuously monitors both the starting battery and auxiliary battery and connects them when either exceeds 13.2 volts, enabling efficient charging from sources... read more
- Regular price
- $109.00
- Regular price
-
$121.00 - Sale price
- $109.00
- Unit price
- per
SHOP WITH CONFIDENCE
APPLIANCE GUYS STANDS BEHIND EVERY TRANSACTION
100%
Satisfaction Guaranteed
Easy Shipping
Price Match
When Will My Item Arrive?
Once shipped, items usually arrive within 3–5 business days. If your item or order is large, it may ship via one of our third-party freight carriers, which deliver from semi trucks with lift gates. Freight delivery is much more complicated than standard parcel shipping — you must schedule a drop-off time, be present for the delivery, and move items from the curb to your residence, among other differences. Sound stressful? If you prepare in advance with ourguide to freight delivery, it doesn’t have to be.
We strongly encourage reading the entire freight delivery guide, but here’s aquick snapshot of what you need to be ready for when you order a large package:- Your freight carrier will call you to schedule a delivery window of about 4–8 hours
- You’re required to be physically present at the specified delivery location during the scheduled window
- Freight shipments are carried in semi trucks, which have lift gates to assist with unloading
- Freight deliveries are dropped off at the curb and no further — not up the driveway, not the porch, not the garage, and most definitely not the backyard — so it’s on you to transport packages to their intended locatio
- For an easier time hauling items to your home or backyard, arrange for at least 2 helpers to be on standby during your delivery window
- You must sign for the shipment to indicate that you’ve accepted the delivery
Again, we recommend reading our entire breakdown of freight delivery so you can become familiar with the process. Trust us when we say that getting caught off guard with the strict requirements of freight delivery can lead to a whole lot of headaches.
This item leaves our warehouse within 30-Day Returns
Returns: Return all new, unused, and unassembled items in their original packaging, and we’ll give you a full refund minus the cost of the original AND return shipping. Made to order and special order items are not applicable for returns.
Restocking Fee: A 20% restocking fee will be applied to returned items.
Dual Battery Sensing Isolator – Smart Power Management

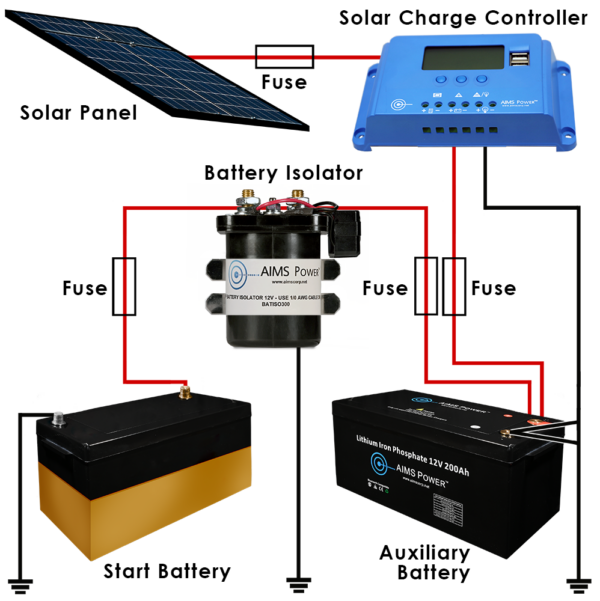

The Dual Battery Sensing Isolator offers a safe, automatic, and cost-effective solution for managing your vehicle’s dual battery system. It continuously monitors both the starting battery and auxiliary battery and connects them when either exceeds 13.2 volts, enabling efficient charging from sources like a solar panel or external charger. Once the auxiliary battery reaches about 80% charge, it can back-feed and charge the starter battery—ensuring you’re never stuck with a drained main battery. The isolator disengages at 12.7 volts, preserving your starter battery’s integrity. An optional Manual Switch provides user control, linking batteries for 60 seconds even without alternator input. This system simplifies installation and protects vital power reserves during both on- and off-road use.
Features
-
Automatic Connection: Solenoid connects auxiliary battery to charging system when either battery reaches 13.2V
-
Dual Battery Monitoring: Isolator continuously monitors both main and auxiliary battery voltages
-
Charging While Driving: Safely charges auxiliary battery without overloading the main system
-
Ignition-Free Installation: No need to connect to ignition, simplifying and speeding up installation
-
External Charging Support: Allows use of an external charger to charge the main battery via the auxiliary battery
-
Battery Protection: Prevents flat start battery by isolating auxiliary load
-

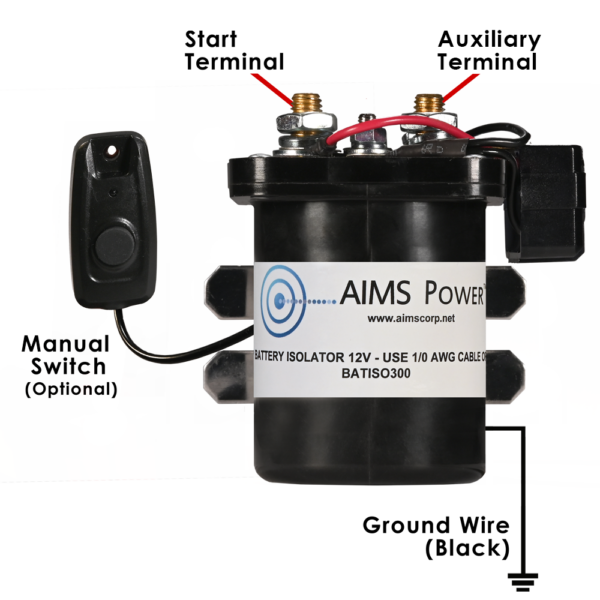

Manual Override (Optional): Manual switch links both batteries for 60 seconds, even if voltage is below 12.7V and alternator is off
Specifications
-
System Voltage: 12V
-
Auto-On Voltage: >13.2V
-
Auto-Off Voltage: 12.7V
-
Turn-On Delay: 5 seconds
-
Turn-Off Delay: 10 seconds
-
Max Continuous Current: 300 Amps
-
Standby Current: <5mA
-
Protection Rating: IP65 (splash proof)
Downloads & Manuals
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
Dual Battery Sensing Isolator – Smart Power Management
The Dual Battery Sensing Isolator offers a safe, automatic, and cost-effective solution for managing your vehicle’s dual battery system. It continuously monitors both the starting battery and auxiliary battery and connects them when either exceeds 13.2 volts, enabling efficient charging from sources like a solar panel or external charger. Once the auxiliary battery reaches about 80% charge, it can back-feed and charge the starter battery—ensuring you’re never stuck with a drained main battery. The isolator disengages at 12.7 volts, preserving your starter battery’s integrity. An optional Manual Switch provides user control, linking batteries for 60 seconds even without alternator input. This system simplifies installation and protects vital power reserves during both on- and off-road use.
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
About the Manufacturer
Manufacturer's Name Aims Power
Welcome to AIMS Power, your ultimate destination for off-grid and renewable energy solutions. With 95 diverse options, including DC to AC inverters, solar panels, batteries, and more, we're committed to providing top-quality products. Founded by Bruce de Jong in 2001, our offerings have been trusted by NASA, the Department of Defense, and Princeton University. Explore our range at ApplianceGuys.com and experience unparalleled quality and customer service. Your energy needs are our priority!
