Aims Power - 5000 Watt NEGATIVE 48 Volt Rack Mount Inverter To 120 Volt AC – 2U (-48V)
Vendor:
FORNO
Forno - 36" Forno Torino 36 Inch Induction Range with True Convection and Air Fry
$6,199.00
$2,799.00
2U Rackmount Inverter for Telecom & Data Centers Ensure reliable backup power with this NEGATIVE 48V 2U rackmount inverter, ideal for telecom and data environments. It delivers 5000W pure sine power at 120Vac, ensuring clean and stable energy for critical equipment. A built-in 70 Amp transfer switch enables automatic transfer... read more
- Regular price
- $1,443.00
- Regular price
-
$1,443.00 - Sale price
- $1,443.00
- Unit price
- per
SHOP WITH CONFIDENCE
APPLIANCE GUYS STANDS BEHIND EVERY TRANSACTION
100%
Satisfaction Guaranteed
Easy Shipping
Price Match
When Will My Item Arrive?
Once shipped, items usually arrive within 3–5 business days. If your item or order is large, it may ship via one of our third-party freight carriers, which deliver from semi trucks with lift gates. Freight delivery is much more complicated than standard parcel shipping — you must schedule a drop-off time, be present for the delivery, and move items from the curb to your residence, among other differences. Sound stressful? If you prepare in advance with ourguide to freight delivery, it doesn’t have to be.
We strongly encourage reading the entire freight delivery guide, but here’s aquick snapshot of what you need to be ready for when you order a large package:- Your freight carrier will call you to schedule a delivery window of about 4–8 hours
- You’re required to be physically present at the specified delivery location during the scheduled window
- Freight shipments are carried in semi trucks, which have lift gates to assist with unloading
- Freight deliveries are dropped off at the curb and no further — not up the driveway, not the porch, not the garage, and most definitely not the backyard — so it’s on you to transport packages to their intended locatio
- For an easier time hauling items to your home or backyard, arrange for at least 2 helpers to be on standby during your delivery window
- You must sign for the shipment to indicate that you’ve accepted the delivery
Again, we recommend reading our entire breakdown of freight delivery so you can become familiar with the process. Trust us when we say that getting caught off guard with the strict requirements of freight delivery can lead to a whole lot of headaches.
This item leaves our warehouse within 30-Day Returns
Returns: Return all new, unused, and unassembled items in their original packaging, and we’ll give you a full refund minus the cost of the original AND return shipping. Made to order and special order items are not applicable for returns.
Restocking Fee: A 20% restocking fee will be applied to returned items.
2U Rackmount Inverter for Telecom & Data Centers
Ensure reliable backup power with this NEGATIVE 48V 2U rackmount inverter, ideal for telecom and data environments. It delivers 5000W pure sine power at 120Vac, ensuring clean and stable energy for critical equipment. A built-in 70 Amp transfer switch enables automatic transfer in under 20ms, maintaining seamless operation during power loss. In normal conditions, the inverter bypasses city power, but instantly draws from a backup DC source when needed, provided adequate voltage is present. Integrated RS485 monitoring gives real-time data on input/output voltage, frequency, and amperage for proactive management. This system ensures continuous power, smooth integration, and operational confidence in any high-demand setting.
Features
-
Power Capacity: 5000W continuous output, NEGATIVE 48V to 120V
-
Waveform Output: Pure sine wave for clean, stable power
-
Mounting Format: 2U rackmount design
-
Compliance: FCC Class B certified
-
Monitoring Interface: RS485 communication port for PC monitoring
-
Digital Display: Toggle through input voltage, output voltage, frequency, and AC current
-
AC Output: Dual AC receptacle with on/off switch
-
Transfer Features: Utility power bypass and automatic transfer switch
-
Safety Indicators: Over-temperature, overload, and short circuit protection indicators
-
Battery Protection: Low voltage warning/shutdown and high input voltage auto shutdown
-
Cooling System: Thermal and load-based fan control
-
Output Protection: AC output short circuit protection
-

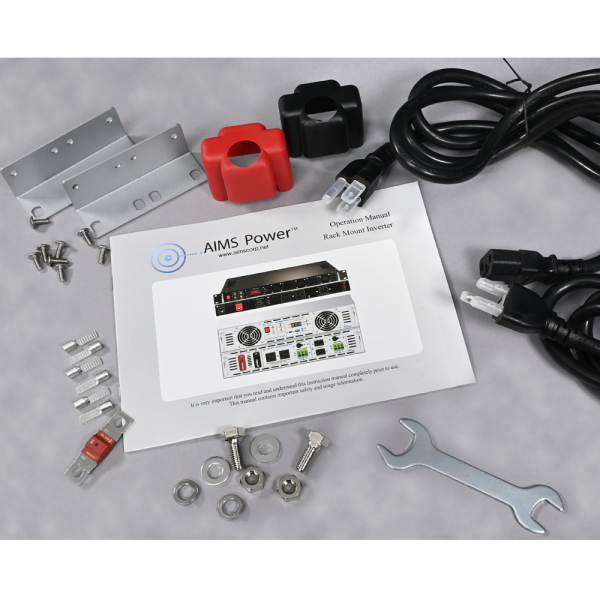

Support: Instruction manual and lifetime tech support
-
Warranty: 1-year parts and labor warranty
Specifications
Power Output:
-
Continuous Power: 5000 Watts
-
Surge Power Capability: 10,000 Watts
-
Output Voltage: 120 Volts AC
-
Output Waveform: Pure Sine Wave
-
Output Frequency: 60 Hz
DC Input:
-
Input Voltage Range: Negative 41–60 Volts
-
Low Battery Shutdown: 40.6 Volts
-
Low Battery Recovery: 42.7 Volts
-
Low Battery Warning/Shutdown: Included
Efficiency & Consumption:
-
No Load Consumption: 0.7 A DC (Fan Off), 1.2 A DC (Fan On)
-
Efficiency: 93%
Temperature Protection:
-
Low Temperature Shutdown: -4°F ± 5°F
-
High Temperature Shutdown: 172°F ± 5°F
-
Recovery Temperature: 136°F ± 5°F (automatic)
Connections & Interfaces:
-
AC Output Socket: Dual Type 2, 3-prong
-
Battery Terminal Size: Blade Style, 0.25″ Diameter
-
Communication Port: RS485
-
AC Output & Bypass Protection: 50A Breaker
Standards & Classification:
-
EMC Compliance: FCC Class B – F690501/RF-EMC000377(H)
Physical Specifications:
-
Unit Dimensions (W x D x H): 16.5 x 21 x 3.75 inches
-
Weight: 31.5 lbs (39 lbs shipped)
Additional Frequency Option:
-
Selectable Frequency: 60/50 Hz
Video
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
2U Rackmount Inverter for Telecom & Data Centers
Ensure reliable backup power with this NEGATIVE 48V 2U rackmount inverter, ideal for telecom and data environments. It delivers 5000W pure sine power at 120Vac, ensuring clean and stable energy for critical equipment. A built-in 70 Amp transfer switch enables automatic transfer in under 20ms, maintaining seamless operation during power loss. In normal conditions, the inverter bypasses city power, but instantly draws from a backup DC source when needed, provided adequate voltage is present. Integrated RS485 monitoring gives real-time data on input/output voltage, frequency, and amperage for proactive management. This system ensures continuous power, smooth integration, and operational confidence in any high-demand setting.
Need More Help?
Our expert can help guide you through
your purchase.
or send us an email
About the Manufacturer
Manufacturer's Name Aims Power
Welcome to AIMS Power, your ultimate destination for off-grid and renewable energy solutions. With 95 diverse options, including DC to AC inverters, solar panels, batteries, and more, we're committed to providing top-quality products. Founded by Bruce de Jong in 2001, our offerings have been trusted by NASA, the Department of Defense, and Princeton University. Explore our range at ApplianceGuys.com and experience unparalleled quality and customer service. Your energy needs are our priority!
